Forgeline and Harrop bring together over 90 years of combined OEM, Motorsport & Aftermarket Performance pedigree and are proud to apply this engineering expertise and advanced technical capability to the off-road racing market with a true forged beadlock race wheel.

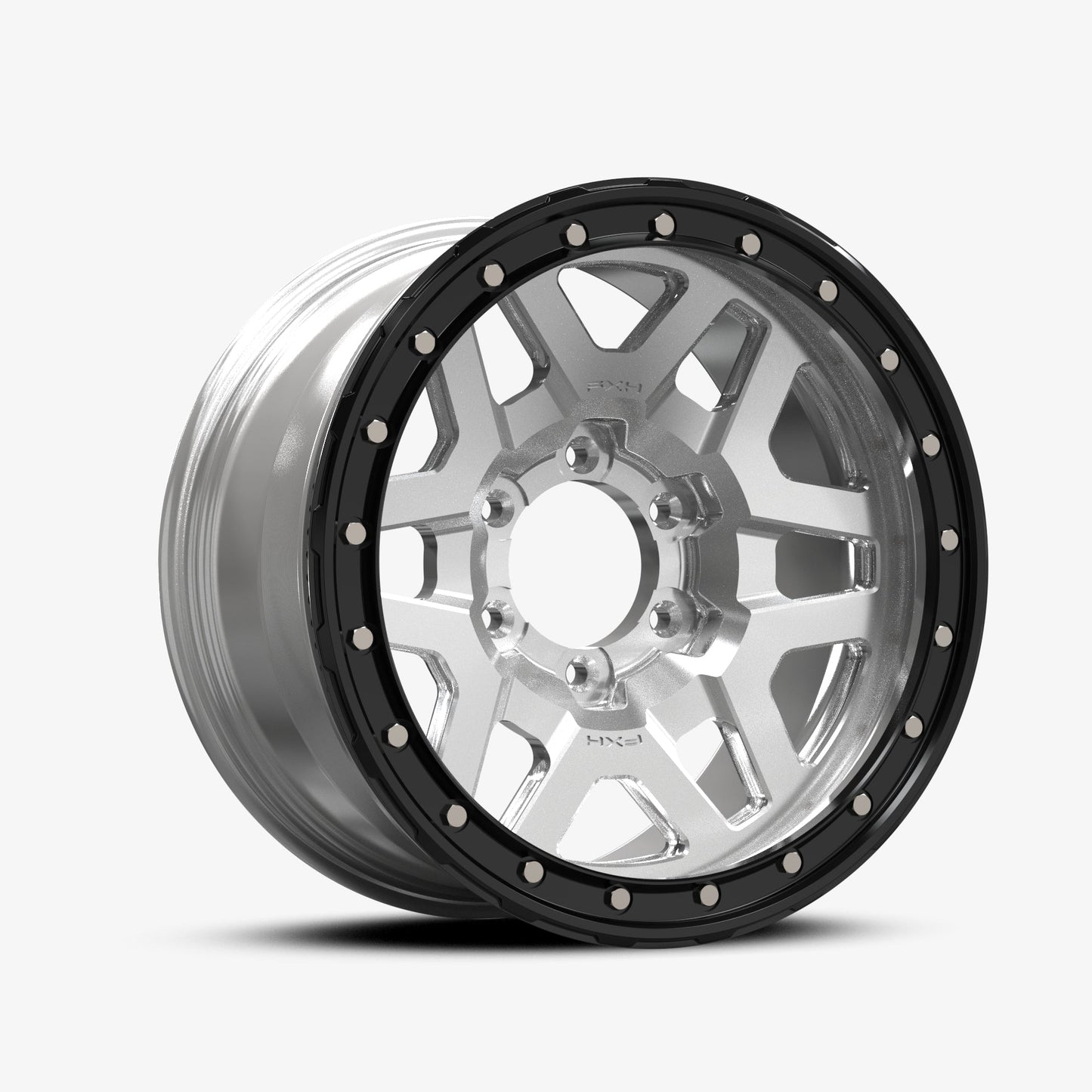

The X1R model is a revolutionary forged monoblock single beadlock racing wheel designed for extreme-duty 6-lug off-road racing applications. Unlike most traditional off-road wheels, FXH’s forged monoblock beadlock X1R wheel is machined entirely from a single forging of 6061-T6 aluminum using an advanced precision manufacturing process. This forged monoblock technology has proven successful, for many years, at the highest levels of motorsport, and we are excited to apply it to off-road racing applications.

X1R is engineered with a leading 4000lb. load rating to handle the most extreme off-road racing scenarios and has been engineered to with a special bolt-on outboard beadlock ring that, like the wheel itself, is also precision-machined from forged 6061-T6 aluminum. This forged aluminium ring holds the tire securely in place and prevents the tire from unseating, under very high loads. The forged beadlock ring is secured to the wheel with a series of 21 standard 5/16-inch grade-8 gold zinc-plated bolts. (Optional stainless steel bolts are also available.)


  • Designed for Extreme-Duty 6-Lug Racing Applications
  • Available in 17x9” in custom offsets
  • One Piece Monoblock Design with NO Welding or Assembly Bolts
  • Precision-Machined from Forged 6061-T6 Aluminum
  • Single Beadlock Design Includes Forged 6061-T6 Beadlock Ring
  • Extreme 4000 lb. Load Rating
  • Exceptional Deflection & Structural Stiffness
  • Generous Brake Clearance
  • Custom Made-to-Order for Each Individual Customer and Each Unique Vehicle Application
  • Custom Finish Options (You can mix and match ring and wheel colours)
  • Optional bolt-on heavy-duty billet aluminum center cap.
  • Engineered by FXH and manufactured in the USA by Forgeline Motorsports.
